Tragi 700/701/702 (Estonia)
Airfoil
   Tragi700 Tragi701 Tragi702
Wing length
3008mm
3100mm
3040mm
Profile
MH-32
MH32
RG15A
Wing area
64.3dm2
65.2dm2
63.2dm2
Wing loading
35.7-59.0g/dm2
34g/dm2
35g/dm2
Structure
-
Portability
3 pieces
Tail
plane
Profile
SD8020
SD8020
SD8020
plane area
7.5dm2
7.7dm2
7.7dm2
etc.
Total weight
2300-3800g
-2250g
-2220g
Radio gear
6 Servos, 7 Channels over
Fuselage Length
1,448mm
1,455mm
1,455mm
The latest model of Tragi series is Tragi702. The airfoil profile of Tragi series has been changed by each model from MH32 to RG15A. TUN Modellbau classified Tragi701 as F3J, and Tragi702 as F3B. However the plan of Tragi701 specifies F3B-F3J and Tragi702, F3B-F3F. Both model has two version, that is, Glass and Carbon. Glass version will be used for F3J. Carbon version will be used for F3B. Tragi702 has a progressive wing from RG15A(1.76/8.9) root to RG15A(1.5/7.0) made by Tragi Ltd 1999.
Designer
/Manufacturer
 H.KORVEL & A.ZUPPING
Tragi Ltd (Estonia)

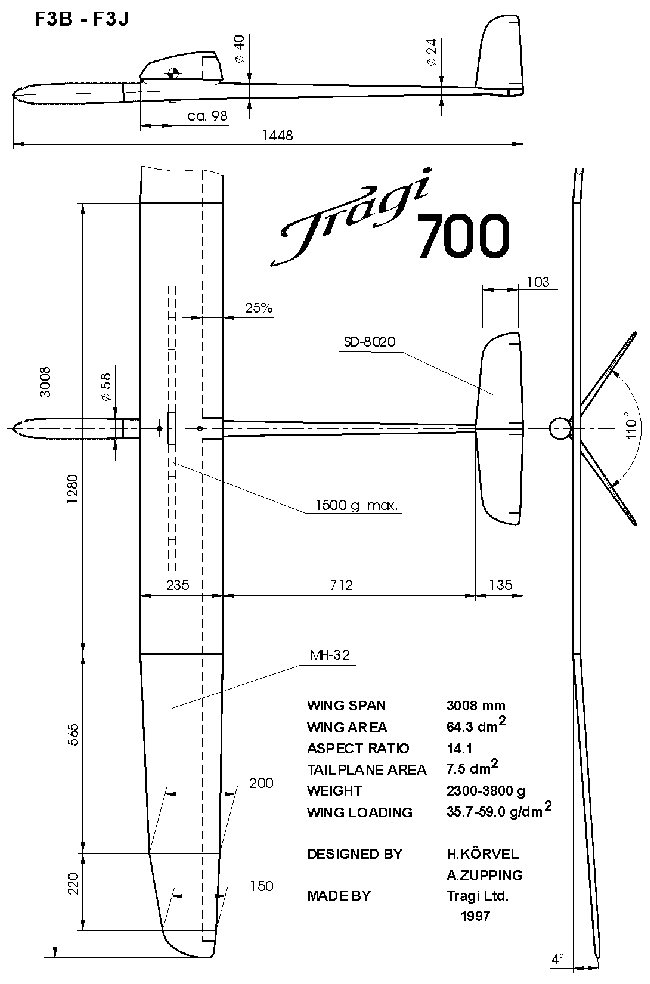

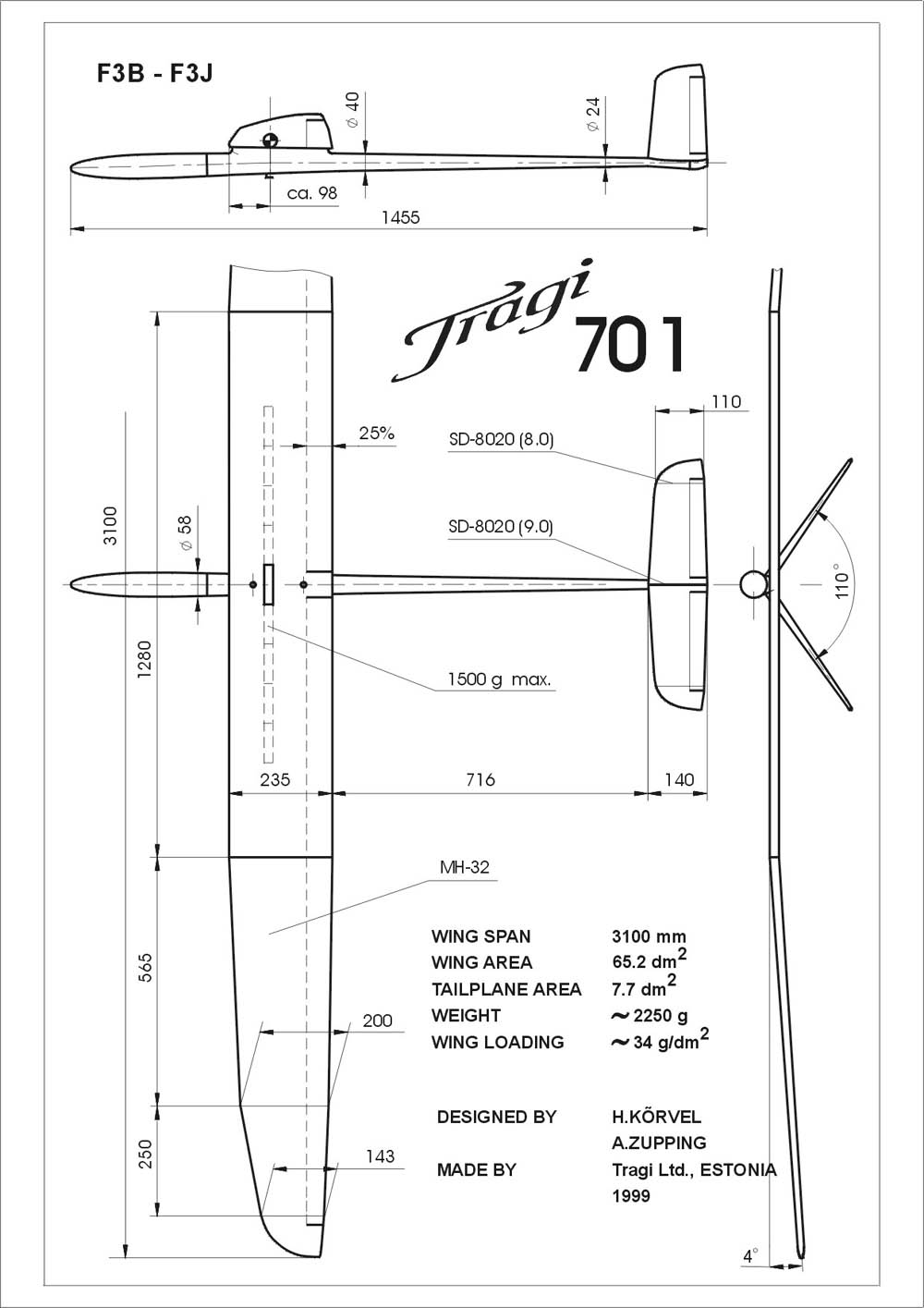

 		Tragi700 Plan Tragi701 Tragi

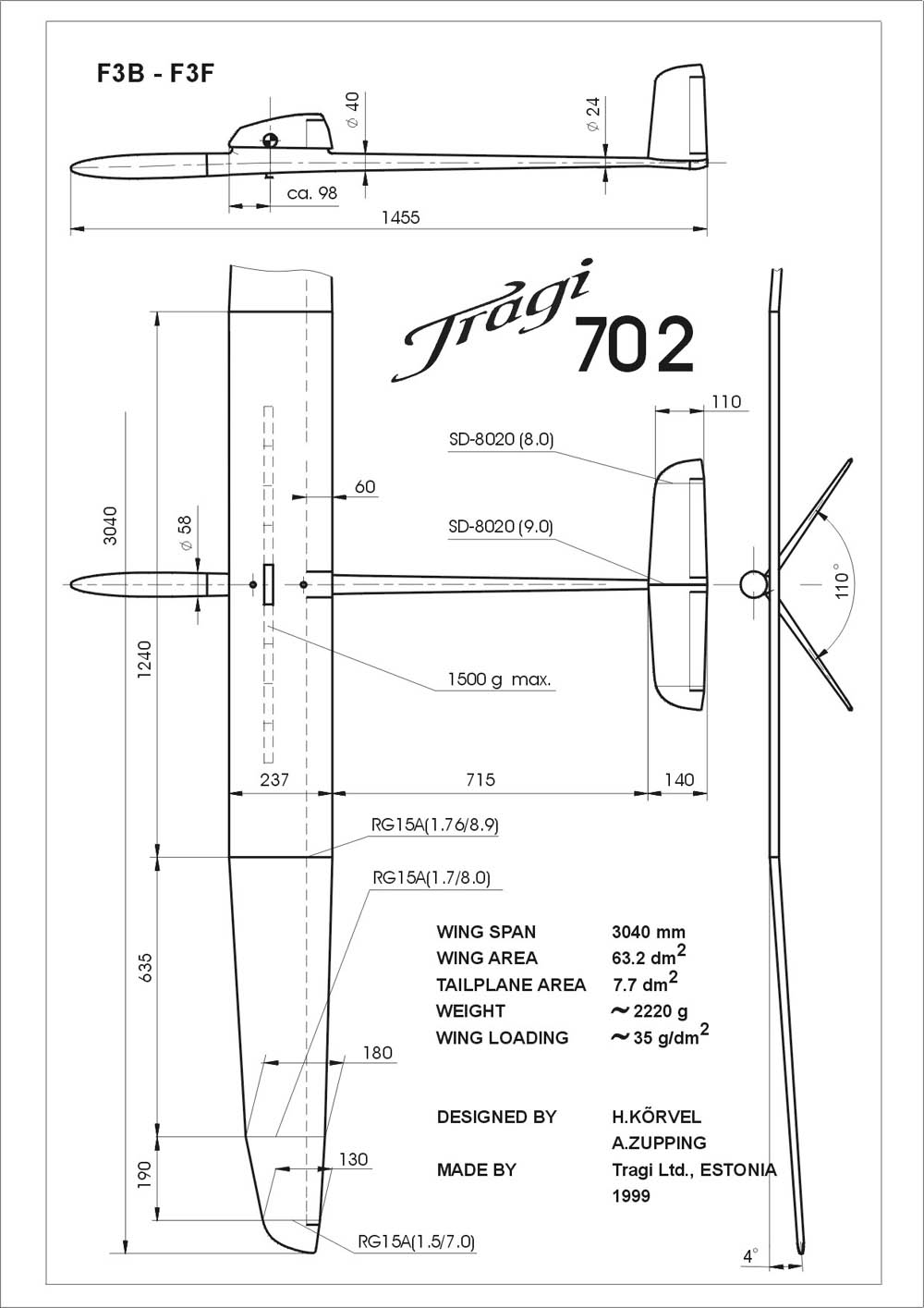

Tragi702 Plan
Tragi700
Tragi701
Tragi702
Price/Receller
 TUN Modellbau (GER)
Tragi701/702: Glass version:1430CHF, Carbon version: 1590CHF.


Tragi701 hook
Tragi Pylon

Technical Notes:
See Standard Setting for Tragi702 quoted from TUN Modellbau web site.
Wing:

Fuselage:

Flight:
