Sharon2
Sharon
Airfoil
Wing length

3 pieces:3,400mm

5 pieces:3,430mm& 3,600mm
Profile
Progressive wing: SD7037 root to modified RG15 tip
Wing area
73.4dm2
Wing loading
ab 35 g/dm2
Structure
-
Portability
3 pieces / 5pieces
Tail
plane
Wing Type
V-Tail
Other
1piece
etc.
Total weight
2540g(3pieces),2570g(5pieces)
Radio gear
6 Servos, 7 Channels over
Fuselage Length
1,620mm & 1,590mm

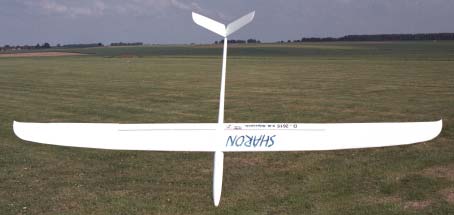

The Sharon is a well known competition glider for F3J. Her excellent gliding characteristics and his sensitivity of thermic are unexceeded. The low weight about under about 2500 g makes an unobjectionable circle flight possible, though wing span is lomger than 3.4m (141.73inches). Proper landings are based on the high demensioned flaps. For friends of electric flight we have got a changing nose. The high quality is as wellknown as the quality of SPACE and SOLITAIRE. 5 pieces wing can have winglet at the tip ends. A hatch is on the top of the nose for installing and maintenace of Radio Gear instead of Cosecorn as usual in other European models.
Designer
/Manufacturer
 CHK Modelle
Sorry!
No Plan
Price/Receller
CHK Modelle (German) Basic price:1350DM.-(excluding shipment & tax)
Sharon information
Shredair (USA) 825.00USD(excluding shipment & tax)
Sharon information

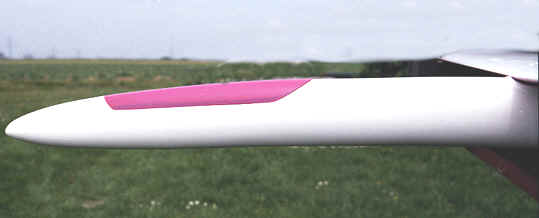

Norse Hatch
Canopy Hatch
